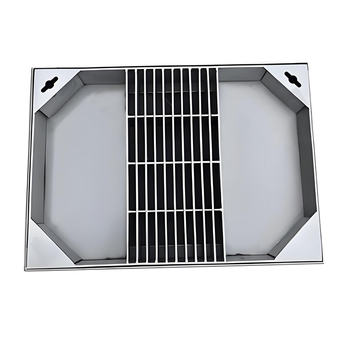

IN STOCK Slotted Drainage Version (Split Type with Open Slots)

Recessed Manhole Cover – Slotted Drainage Version (Split Type with Open Slots)

Product Introduction

The Recessed Manhole Cover – Slotted Drainage Version is a split-type invisible access cover designed for areas requiring both concealed surface aesthetics and efficient water drainage. Unlike solid infill versions, this cover features precision-engineered open slots or perforations across the lid surface, allowing stormwater, washdown water, or surface runoff to pass directly into a collection channel or sump below.

The system retains the two-piece split design: a heavy-duty support frame (stainless steel, galvanised steel, or aluminium) is permanently set into the ground, while the recessed lid – with a shallow tray (30–50mm deep) containing open slots – can be lifted out for maintenance. The lid may be left uninfilled (exposed metal slots) or partially filled with resin-bound gravel for a semi-invisible finish. This product is ideal for drainage channels, plaza edges, pool surrounds, and commercial kitchens where standing water must be eliminated without exposing unsightly grates.

Typical Applications

Landscaped drainage swales and stormwater collection points
Swimming pool perimeter drains and splash decks
Commercial kitchen and food processing plant floor drains
Airport tarmac edge drains and service pit runoff collection

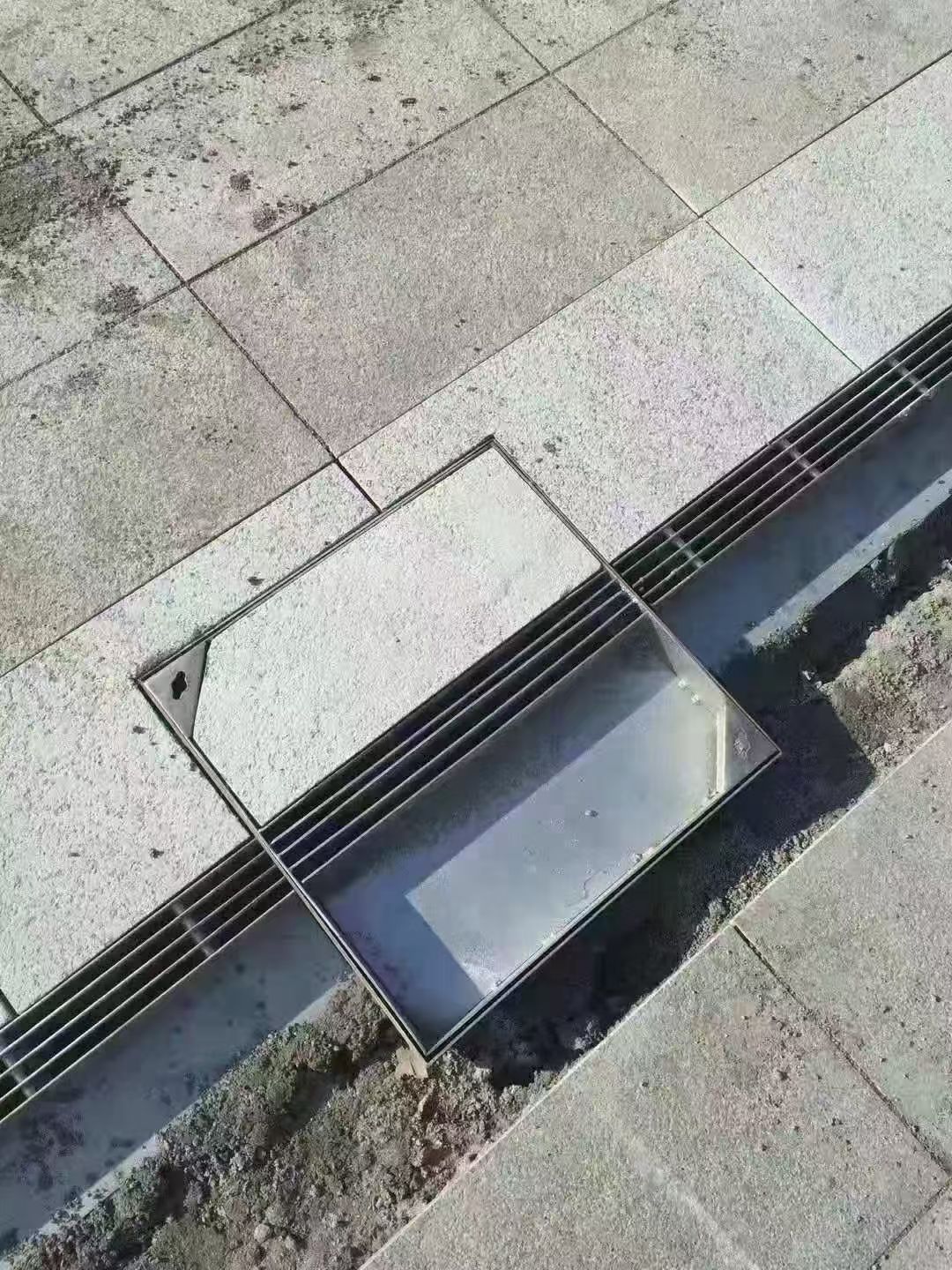

Pedestrian plazas with hidden linear drainage
Car park entry/exit washdown areas and tyre-wash pits
Cold storage and industrial washdown zones (slotted for rapid drainage)

CALL US +852 51325069

Integrated Drainage

Optimised Slot Geometry

Split-Type Cleanout

Product Specifications

Item	Description
Product Type	Recessed manhole cover – split two-piece design with slotted or perforated lid (open drainage version)
Frame Material	Stainless steel 304 / 316 (2.0–4.0mm thick), hot-dip galvanised mild steel (3.0–5.0mm, ≥85µm), or aluminium 6061 (for non-corrosive environments)
Lid Material	Same as frame material – lid rim with recessed tray machined with drainage openings
Drainage Pattern	Longitudinal slots (5×50mm or 8×80mm at 15–20mm centres), circular perforations (Ø6–10mm staggered), or custom laser-cut geometric patterns
Open Area Ratio	25% – 50% of lid surface (customisable)
Recess Depth	30mm (minimum for gravel or no infill), 50mm (for resin-bound aggregate infill between slots)
Clear Opening	300×300mm, 450×450mm, 600×600mm, 800×800mm, 900×600mm, 1000×1000mm, 1000×500mm (linear drain use) – rectangular or square
Frame Outer Size	Clear opening + 100–150mm frame width
Load Rating (EN124)	A15 (15kN – pedestrian only) B125 (125kN – footway, car parks) C250 (250kN – kerbside, light traffic) D400 (400kN) available in heavy-section stainless or galvanised steel with reinforced slot ribs
Slot Width	5mm, 6mm, 8mm, 10mm, 12mm (narrower slots prevent high heels or rod entry)
Slot Length	40mm, 60mm, 80mm, or continuous full-length slots (recommended for linear drainage)
Lifting System	Two concealed penta-key holes (lid only) – slots do not interfere with lifting; frame has fixed lifting eyes during installation
Hinge Option	Optional heavy-duty stainless steel hinge for hinged lid (split type normally free-liftable)
Debris Control	Optional removable debris basket or sediment trap suspended below lid
Surface Finish	Mill finish (standard), brushed (stainless), hot-dip galvanised (steel), or anodised (aluminium) – no infill required but may be partially filled

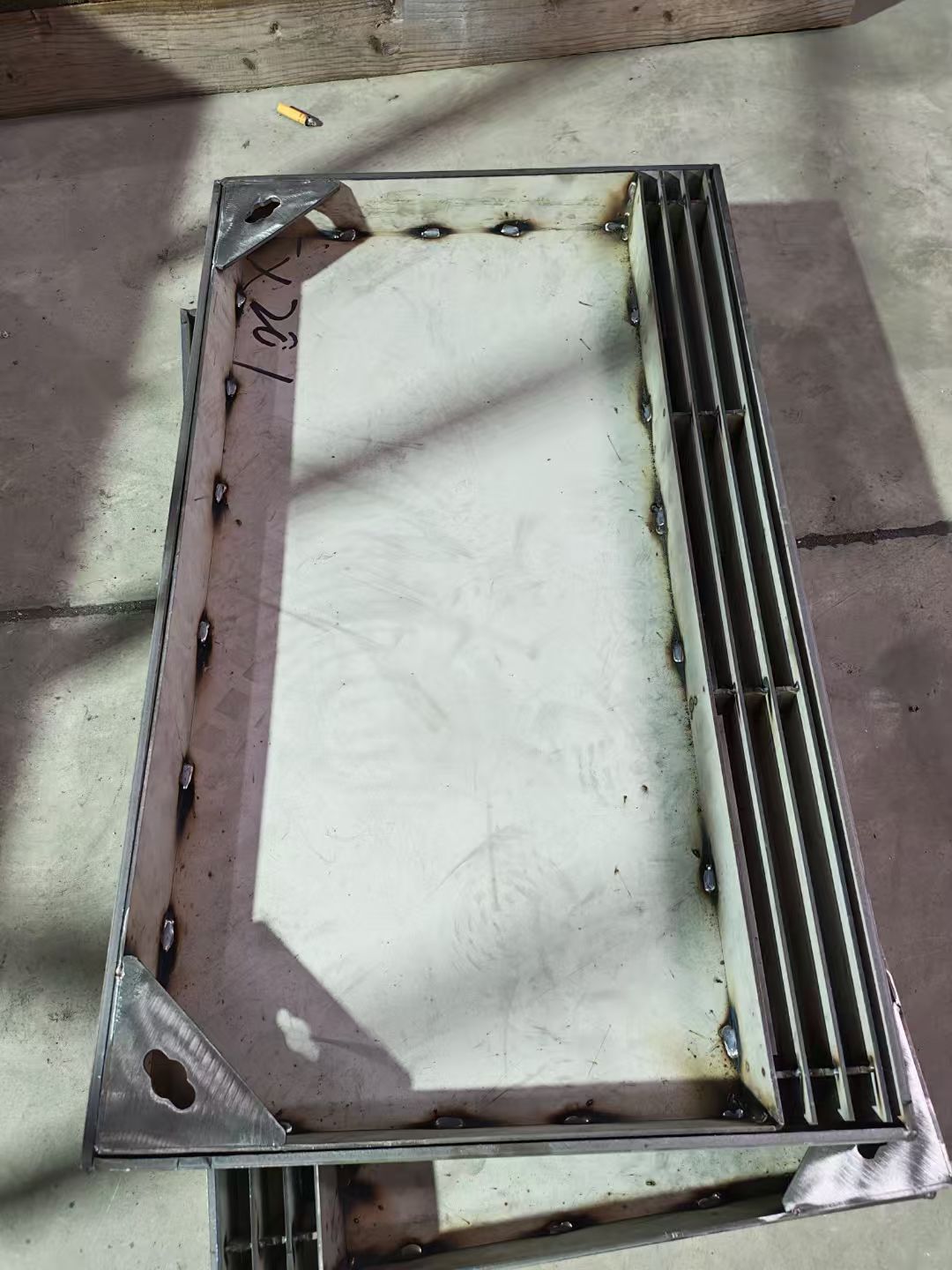

Frame Features	Anchor lugs (min 4 per side), pre-punched bolt holes, optional rubber seal for odour/insect prevention in sanitary drainage
Corrosion Protection	Passivated (SS304/316), HDG ≥85µm (steel), anodised (aluminium)
Design Life	Stainless steel 316: 50+ years in coastal or chemical environments Galvanised steel (≥85µm): 20–35 years (inland) Aluminium: 40+ years (fresh water only)

Key Features & Benefits

Integrated Drainage + Invisibility

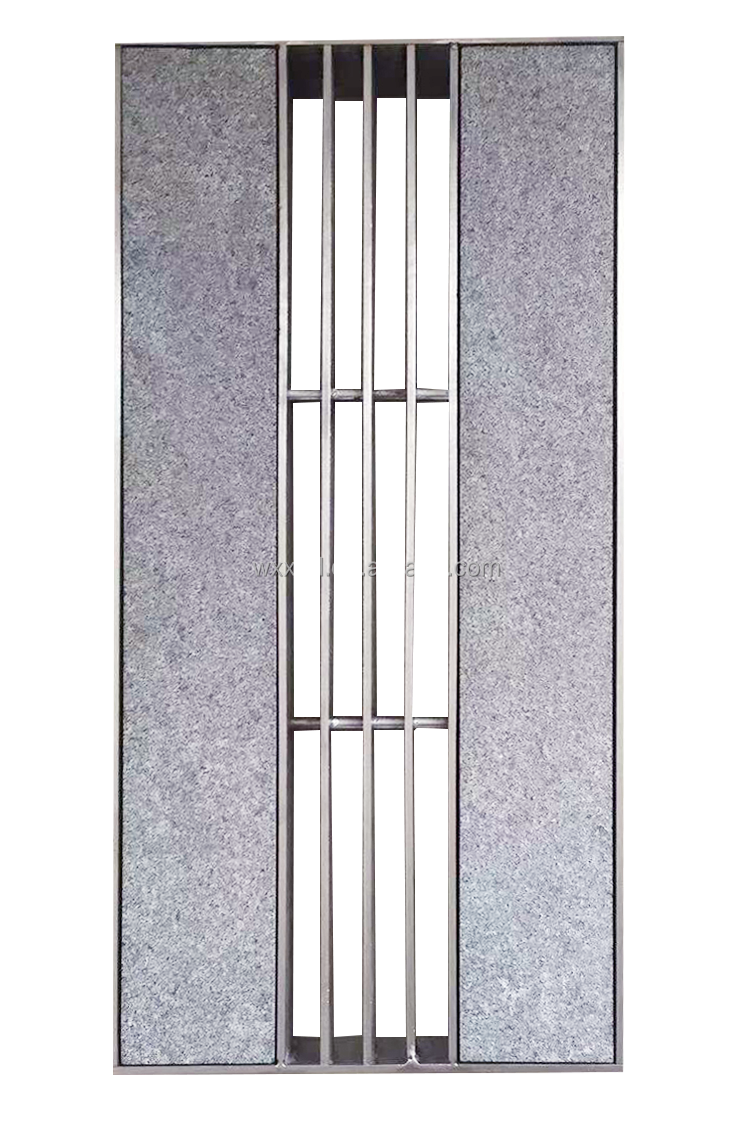

Allows surface water to disappear into the cover while maintaining a nearly flush finish. When partially filled with matching resin-bound gravel, the cover blends into paved areas but continues to drain freely.

Optimised Slot Geometry

Laser-cut or stamped slots are sized to prevent heel entrapment (≤8mm for pedestrian zones) while allowing high flow rates. Horizontal ribs between slots maintain structural integrity under wheel loads – no bending or slot deformation even at D400 rating.

Split-type Cleanout Access

For maintenance, the entire slotted lid lifts out without tools, exposing the drainage channel or sump below. Debris can be flushed or vacuumed from above; optional sediment baskets simplify cleaning.

Heavy-duty Load Performance

Reinforced slot bridges and a deep peripheral flange distribute point loads. Proof-tested to 2× rated load. Slotted lids up to C250 can be specified for car parks; D400 rated slotted covers are available for delivery yards.

Corrosion Resistance for Wet Environments

SS316 frame and lid are standard for pool surrounds, coastal plazas, and food plants. Hot-dip galvanised steel (≥85µm) offers 20–35 years in urban drainage applications. Aluminium is suitable for indoor or freshwater settings (avoid chlorides).

Anti-vandal & Anti-blockage

Slots can be designed with a “V” or trapezoidal profile to resist jamming by gravel or cigarettes. For high-debris areas, a removable coarse screen can be clipped under the lid.

Custom Patterns without Mould Costs

Using laser or waterjet cutting, any slot shape, logo slot pattern, or site-specific drainage array can be produced in low volume. Ideal for architecturally visible drainage or heritage sites requiring bespoke gratings.

One-Stop Customisation

Every parameter is fully customisable: frame material & thickness, clear opening dimensions (including non-standard rectangles), slot width/length/pattern, open area ratio, load rating (A15 to D400), lifting key type, and debris management accessories.
We offer complete design-to-delivery service – from CAD drawing and hydraulic area calculation (m²/s drainage capacity) to sample cutting and load testing.
Whether you need 10 units for a luxury hotel pool deck or 500 units for an airport apron drainage retrofit, we deliver slotted recessed covers that drain fast, stay hidden, and last decades.
